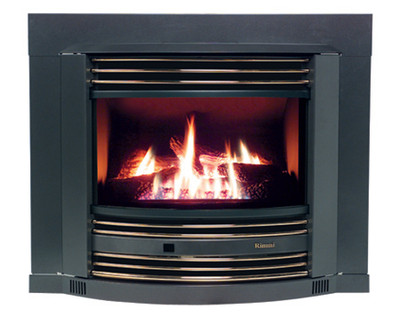

Rinnai Compact 2

Designed and made in New Zealand

The Rinnai Compact 2 has been designed to get into those tighter spaces, whether it’s an existing masonry chimney or a smaller living room. It’s easy to retrofit and looks terrific.

Key features

• Range of frame options to suit any living space
• 2-speed convection fan quickly and effectively disperses the heat
• Easy installation, shallow firebox will fit most existing fireplaces
• Operation is easy with push button controls
• Gas type

  Available for Natural Gas or LPG, specify at the time of purchase

  Data plate

  Inside the appliance on the front right hand side

  Fan

  Convection fan tangential 2-speed

  Flueing - mock chimney

  Inner Ø100 mm, outer Ø150 mm. Appliance must be installed with a Rinnai flue system.

  Flueing - masonry

  The Compact 2 must be installed with a Rinnai flexiliner flue Ø100 mm

  Gas connection

  ½ ” BSPF male flare

  Gas control

  Push button combination control valve

  Ignition

  Continuous spark electronic ignition

  Noise level

  49 dB(A)

  Operation

  Push button light to pilot and burners (low, medium, and high)

  Power consumption

  • High 20 W
  • Standby 0 W

  The electrical connection can exit the appliance from the lower left or right hand side, or from the rear of the unit.

  Safety devices

  Flame failure thermocouple, overheat switch, fan delay, and power failure protection

  Weight

  39 kg

  General clearances

  The minimum clearances listed below are measured from the edge of the inner glass.

  • Above – 300 mm
  • Sides – 300 mm (includes side walls)
  • In front – 1000 mm
  Dimensions

  • These are the unit dimensions only, not the framing/cavity dimensions
  • Viewable glass dimensions 475 x 270 mm
